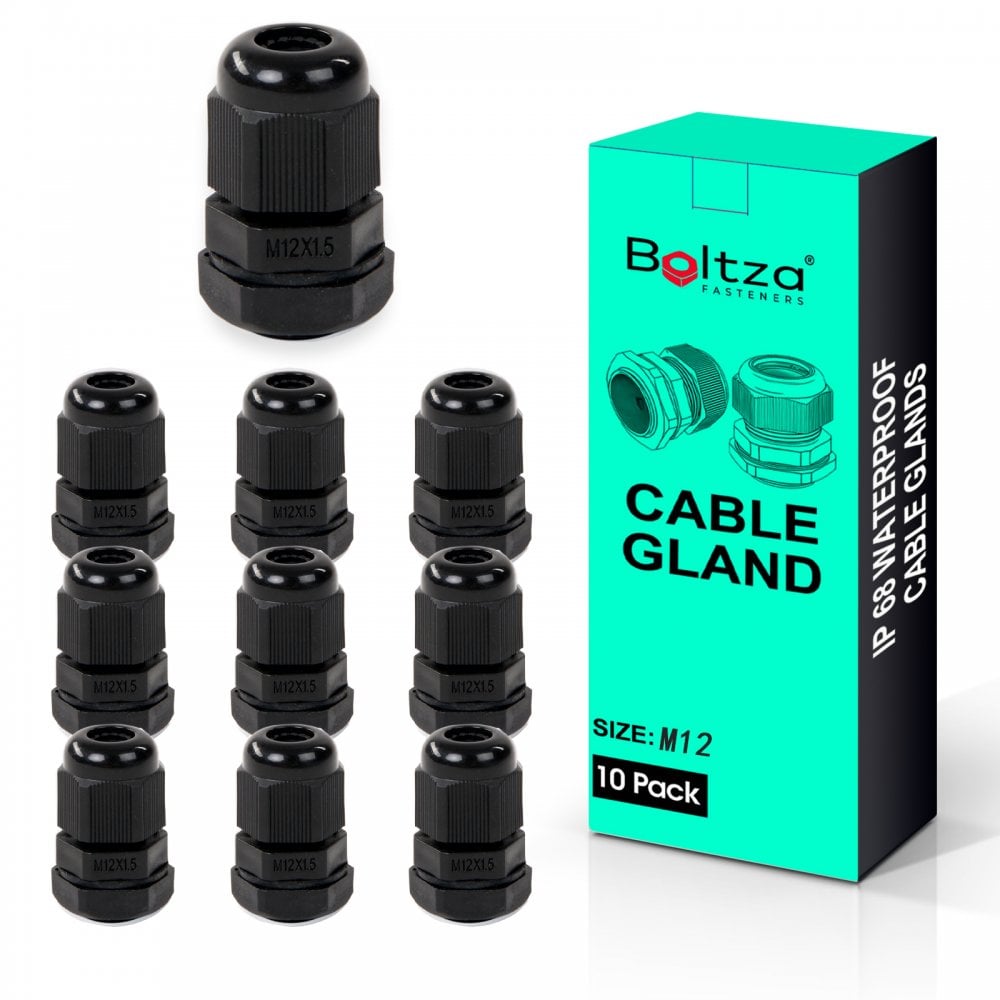

Black Nylon Cable Glands M12–M30 – IP68 Waterproof Electrical Conduit Fittings for Outdoor Panels, Boxes & Enclosures

• High-Strength Nylon Build:  Manufactured from industrial-grade Nylon PA66 (polyamide 6.6) for exceptional durability. This flame-retardant material (UL 94V-2) resists cracking, impact, and UV damage, ensuring long service life in tough conditions.
• IP68 Waterproof Protection: Achieves an IP68-rated seal to safeguard your cables from water, dust, and debris. The gland’s rubber seal and O-ring create a water-tight barrier, keeping connections dry even under full immersion.

• Versatile Size Range: Available in metric thread sizes M12 to M30, accommodating cable diameters from 3 mm up to 18 mm. Each gland includes a matching locknut and washer for secure mounting.
• Secure Strain Relief: Internal claw and compression seal mechanism ensures the cable is locked in place, preventing pull-out or twisting under strain, vibration, or motion.

• Wide Application & Compliance: Perfect for use in electrical enclosures, junction boxes, control panels, lighting setups, and more. Fully CE and RoHS compliant for commercial, industrial and residential applications.

Product Specification:

• Brand: Boltza®
• Material: Nylon PA66 (Polyamide 6.6), UL 94V-2 flame-retardant
• Colour: Black (RAL 9005)
• Thread Sizes Available: M12, M16, M18, M20, M22, M24, M30
• Cable Diameter Range: 3 mm to 18 mm (depending on size)
• Ingress Protection: IP68 – waterproof and dust-tight
• Temperature Range: -40 °C to +100 °C (short-term +120 °C)
• Includes: Nylon locknut and rubber sealing washer
• Compliance: RoHS certified, conforms to EN 60529 (IP68), EN 62444

Boltza® Black Nylon Cable Glands are a high-performance solution for waterproof cable entry and protection. Crafted from reinforced Nylon PA66 and precision-engineered to IP68 standards, they’re built to handle harsh outdoor, industrial, or domestic installations.

Designed for easy fitting, each gland securely grips the cable while sealing out water, dust, and debris. Sizes from M12 to M30 cover a full range of cable diameters from 3 mm to 18 mm. Electricians, installers, and engineers trust these glands for their strength, weather resistance, and strain relief properties. Suitable for all wiring jobs, including control panels, lighting systems, machinery, and outdoor power installations.

• Stuffing Gland: Modern electrical gland for cable entry sealing – durable alternative to rubber grommets.
• Strain Relief Fitting: Protects cable connections by clamping onto the outer sheath, ideal for mobile or high-vibration installations.
• Conduit Cable Entry: Perfect for metric conduit knockouts and control box entry points.
• Waterproof Electrical Fitting: Seals and protects against water ingress in harsh environments.
• Plastic Gland Connector: UV-stabilised polyamide body for corrosion-free installation in damp or outdoor locations.

Cable Gland Size Compatibility:

• M12 – Thread Diameter 12 mm – Suitable for 3 mm to 6.5 mm cables
• M16 – Thread Diameter 16 mm – Suitable for 4 mm to 8 mm cables
• M18 – Thread Diameter 18 mm – Suitable for 5 mm to 10 mm cables
• M20 – Thread Diameter 20 mm – Suitable for 6 mm to 12 mm cables
• M22 – Thread Diameter 22 mm – Suitable for 10 mm to 14 mm cables
• M24 – Thread Diameter 24 mm – Suitable for 12 mm to 16 mm cables
• M30 – Thread Diameter 30 mm – Suitable for 16 mm to 21 mm cables
