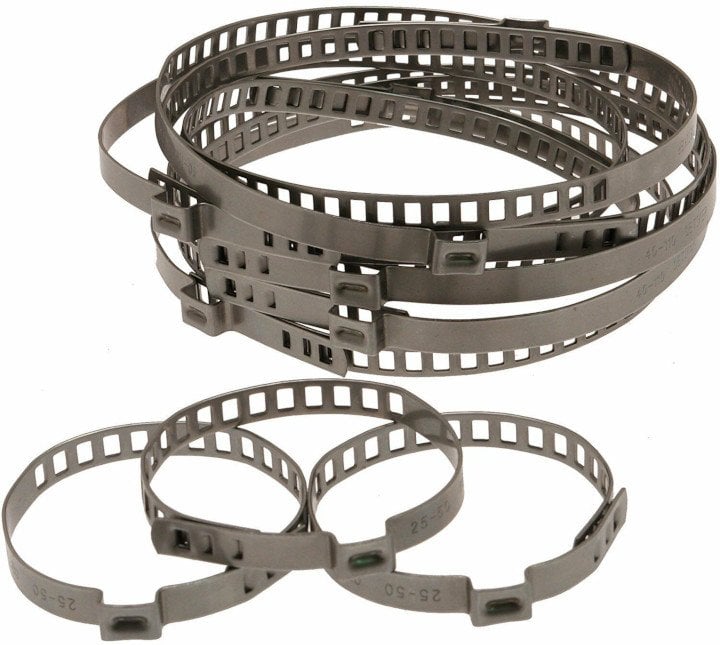

The Constant Velocity Boot Clip from Jubilee secures the rubber bellows to the CV joint and helps protect it from dirt and water as well as preventing lubricants from leaking.

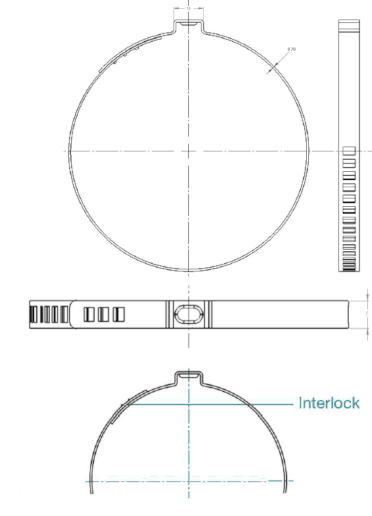

Supplied as a flat strap, Jubilee CV Boot Clips can be easily installed by interlocking the clip hooks on the outside of the band and crimping the ear to secure. The clip must be shaped prior to assembly.
Both clip sizes have a choice of engagement positions to easily adjust to different diameters. Essential for MOT legislation.
The success of the company based on the principal foundation of quality. Through both the variety of our products and the quality of our service, we aim to be a company that you can rely on. Jubilee® Clips are manufactured to the very highest standards, using only premium grade materials. All our product ranges are systematically checked to their various Standards during manufacture and packing. Jubilee clips are KitemarkedTM to BS 5315:1991, the company is registered to BS EN ISO 9001:2008 Quality Management System and ISO 14001 Environmental Management System. The Original and High Torque stainless steel ranges are also Lloyd’s Type Approved, essential when used for marine applications. All Jubilee® products conform to the latest EU Directives.
Jubilee Clips conduct Neutral Salt Spray tests (NSS) according to BS EN ISO 9227 2006. The NSS test is performed in a sealed chamber at 35oC, where a 5% NaCl solution with a PH value of between 6.5 and 7.2 is sprayed continuously onto the clips. The duration of time shown in this product brochure shows the minimum number of hours the clips can withstand the salt spray test without significant signs of corrosion (red rust formation). It is difficult to transfer this information to a length of time the clips would survive in an application under normal environmental conditions, as these will vary from one location to the next. Two hundred forty hours is regarded by the British construction industry as the equivalent of a lifetime of 60 years in an urban outside environment in the UK.
Available in Stainless Steel
Band Width mm
Kit – see below for contents
