High Torque

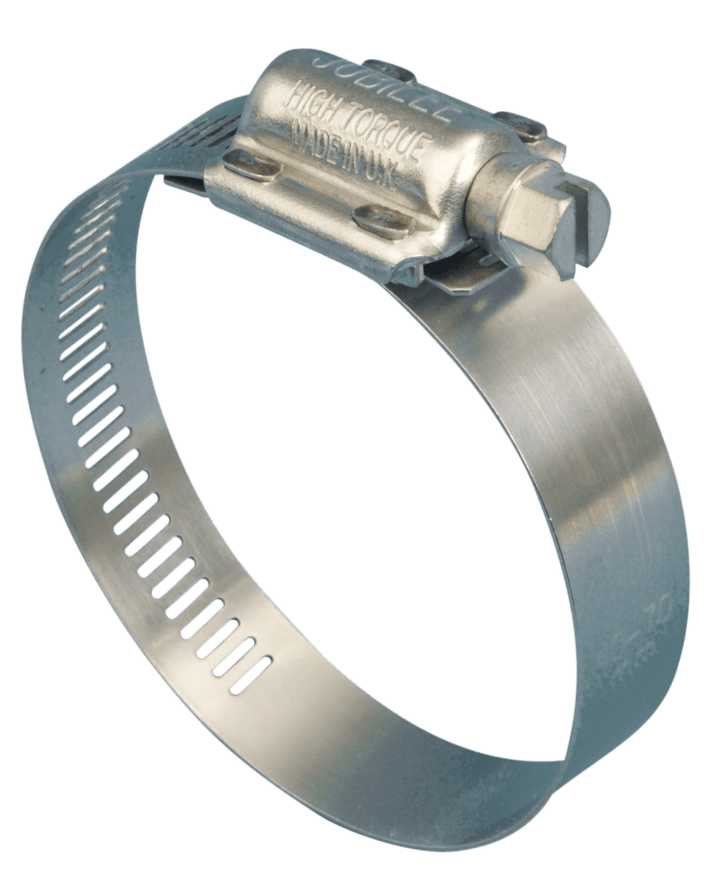

Jubilee® High Torque clips are made of all stainless steel, with a two-part housing and cut through the band, keeping the band straight at the point of engagement and fully engaging all of the screw thread; giving a superior tightening torque. Although not suitable for use on soft hoses, where the high forces and the perforated band may cut into the hose, they are ideal where a high clamping force is required and with a flexible band material they can achieve a high level of friction even against a smooth surface such as a metal pole.

These clips conform to SAE J1508 type HD.



Jubilee High Torque Clips are suitable for heavy-duty applications with plastic or reinforced hoses. The high clamping forces make this clip suitable for heavy duty applications where stubborn leakage or vibration issues make lesser clips and clamps unsuitable.


The success of the company based on the principal foundation of quality. Through both the variety of our products and the quality of our service, we aim to be a company that you can rely on. Jubilee® Clips are manufactured to the very highest standards, using only premium grade materials. All our product ranges are systematically checked to their various Standards during manufacture and packing. Jubilee clips are KitemarkedTM to BS 5315:1991, the company is registered to BS EN ISO 9001:2008 Quality Management System and ISO 14001 Environmental Management System. The Original and High Torque stainless steel ranges are also Lloyd’s Type Approved, essential when used for marine applications. All Jubilee® products conform to the latest EU Directives.



Jubilee Clips conduct Neutral Salt Spray tests (NSS) according to BS EN ISO 9227 2006. The NSS test is performed in a sealed chamber at 35oC, where a 5% NaCl solution with a PH value of between 6.5 and 7.2 is sprayed continuously onto the clips. The duration of time shown in this product brochure shows the minimum number of hours the clips can withstand the salt spray test without significant signs of corrosion (red rust formation). It is difficult to transfer this information to a length of time the clips would survive in an application under normal environmental conditions, as these will vary from one location to the next. Two hundred forty hours is regarded by the British construction industry as the equivalent of a lifetime of 60 years in an urban outside environment in the UK.




Available in  Stainless Steel
