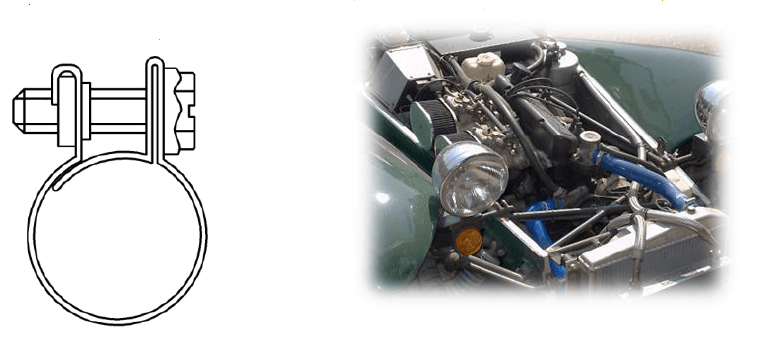

These mini clips, also known as nut & bolt clips, are ideal for small bore hoses with relatively low pressures, where little clamping force is required. Used in low-pressure applications such as a fuel line. JubileeĀ® Juniors are available in mild steel zinc plated and marine grade 304 stainless steel.
The success of the company based on the principal foundation of quality. Through both the variety of our products and the quality of our service, we aim to be a company that you can rely on. JubileeĀ® Clips are manufactured to the very highest standards, using only premium grade materials. All our product ranges are systematically checked to their various Standards during manufacture and packing. Jubilee clips are KitemarkedTM to BS 5315:1991, the company is registered to BS EN ISO 9001:2008 Quality Management System and ISO 14001 Environmental Management System. The Original and High Torque stainless steel ranges are also Lloyd’s Type Approved, essential when used for marine applications. All JubileeĀ® products conform to the latest EU Directives.
Jubilee Clips conduct Neutral Salt Spray tests (NSS) according to BS EN ISO 9227 2006. The NSS test is performed in a sealed chamber at 35oC, where a 5% NaCl solution with a PH value of between 6.5 and 7.2 is sprayed continuously onto the clips. The duration of time shown in this product brochure shows the minimum number of hours the clips can withstand the salt spray test without significant signs of corrosion (red rust formation). It is difficult to transfer this information to a length of time the clips would survive in an application under normal environmental conditions, as these will vary from one location to the next. Two hundred forty hours is regarded by the British construction industry as the equivalent of a lifetime of 60 years in an urban outside environment in the UK.
Available in Mild Steel and Stainless Steel
Part No. | Adjustment mm | Band Width mm | Band Thickness mm | Recommended Torque Nm | Maximum Torque Nm | Maximum Pressure PSi |
NB0709SS NB0810SS NB0911SS NB1012SS NB1113SS NB1214SS NB1315SS NB1416SS | 7-9 8-10 9-11 10-12 11-13 12-14 13-15 14-16 | 9.1 9.1 9.1 9.1 9.1 9.1 9.1 9.1 | 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 | 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 | 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 | 75 75 75 50 50 50 50 50 |
Part No. | Adjustment mm | Band Width mm | Band Thickness mm | Recommended Torque Nm | Maximum Torque Nm | Maximum Pressure PSi |
NB0709MS NB0810MS NB0911MS NB1012MS NB1113MS NB1214MS NB1315MS NB1416MS NB1517MS NB1618MS NB1820MS | 7-9 8-10 9-11 10-12 11-13 12-14 13-15 14-16 15-17 16-18 18-20 | 9.1 9.1 9.1 9.1 9.1 9.1 9.1 9.1 9.1 9.1 9.1 | 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 | 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 | 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0 | 75 75 75 50 50 50 50 50 50 50 50 |
