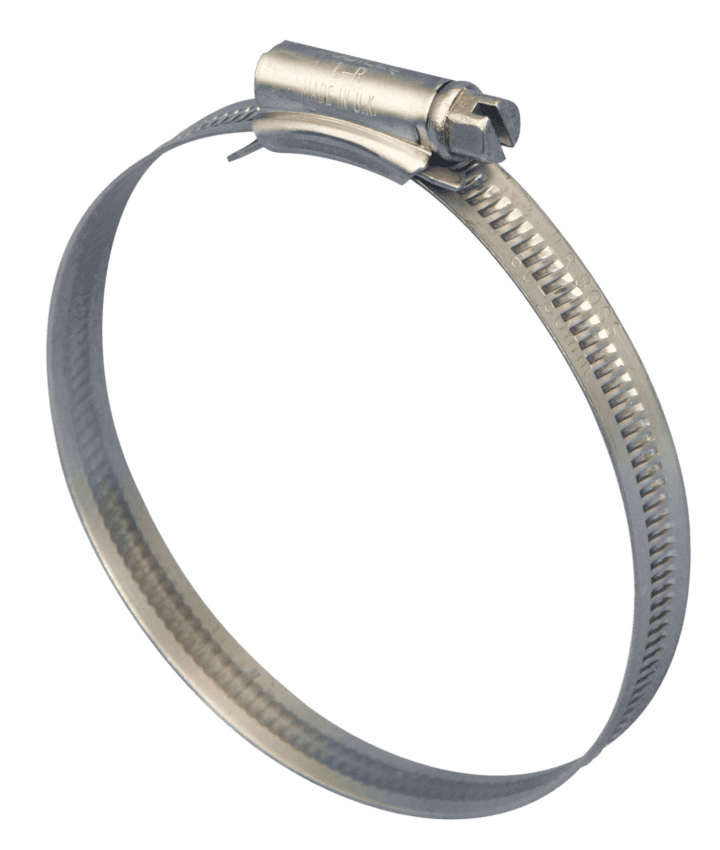

With a narrower band than the Original JubileeĀ® Clip, this lightweight the clip is designed to offer an excellent seal at slightly lower torques. The JubileeĀ® Light Range is manufactured to DIN 3017 and, like the Original JubileeĀ® Clip, all clips are continuously threaded to enable extra flexibility when adjusting the clips to the required size. This the clip is most suited to applications where space, or weight, is restricted and often used in car and light commercial vehicle applications.
The JubileeĀ® Light Range clip meets the high standard of quality and performance required of all JubileeĀ® products. The benefits of weight saving and extra corrosion resistance allow this addition to the full range of Jubilee clips to offer the customer a greater flexibility in meeting their own requirements.
Our JubileeĀ® Light Range in zinc protected mild steel was originally designed specifically for use in the automotive industry and the automotive aftermarket to comply with DIN 3017, but are also suited for other applications where space, or weight, is restricted in e.g. agricultural applications, the industrial sector and hardware/DIY applications.
JubileeĀ® Light Range hose clips in 304 (18/8) stainless steel are used in the marine, oil and gas and food sectors, as well as other corrosive environments where higher corrosion resistance is required, but space and/or weight are at a premium.
The success of the company based on the principal foundation of quality. Through both the variety of our products and the quality of our service, we aim to be a company that you can rely on. JubileeĀ® Clips are manufactured to the very highest standards, using only premium grade materials. All our product ranges are systematically checked to their various Standards during manufacture and packing. Jubilee clips are KitemarkedTM to BS 5315:1991, the company is registered to BS EN ISO 9001:2008 Quality Management System and ISO 14001 Environmental Management System. The Original and High Torque stainless steel ranges are also Lloyd’s Type Approved, essential when used for marine applications. All JubileeĀ® products conform to the latest EU Directives.
Jubilee Clips conduct Neutral Salt Spray tests (NSS) according to BS EN ISO 9227 2006. The NSS test is performed in a sealed chamber at 35oC, where a 5% NaCl solution with a PH value of between 6.5 and 7.2 is sprayed continuously onto the clips. The duration of time shown in this product brochure shows the minimum number of hours the clips can withstand the salt spray test without significant signs of corrosion (red rust formation). It is difficult to transfer this information to a length of time the clips would survive in an application under normal environmental conditions, as these will vary from one location to the next. Two hundred forty hours is regarded by the British construction industry as the equivalent of a lifetime of 60 years in an urban outside environment in the UK.
Available in Mild Steel and Stainless Steel
Part No. | Adjustment mm | Band Width mm | Band Thickness mm | Recommended Torque Nm | Maximum Torque Nm | Maximum Pressure PSi |
000SS M00SS 00SS LR022SS LR027SS LR032SS LR040SS LR045SS LR050SS LR060SS LR070SS LR080SS LR090SS LR100SS LR110SS LR120SS LR130SS LR140SS LR150SS LR160SS | 9.5-12 11-16 13-20 12-22 16-27 20-32 25-40 30-45 32-50 40-60 50-70 60-80 70-90 80-100 90-110 100-120 110-130 120-140 130-150 140-160 | 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 | 0.762 0.762 0.762 0.762 0.762 0.762 0.762 0.762 0.762 0.762 0.762 0.762 0.762 0.762 0.762 0.762 0.762
| 3.4 3.4 3.4 3.4 3.4 3.4 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 | 4.5 4.5 4.5 4.5 4.5 4.5 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 | 203 203 203 182 182 92 92 92 92 92 92 39 39 39 39 39 39 39 17 17 |
Part No. | Adjustment mm | Band Width mm | Band Thickness mm | Recommended Torque Nm | Maximum Torque Nm | Maximum Pressure PSi |
000MS M00MS 00MS LR022MS LR027MS LR032MS LR040MS LR045MS LR050MS LR060MS LR070MS LR080MS LR090MS LR100MS LR110MS LR120MS LR130MS LR140MS LR150MS LR160MS | 9.5-12 11-16 13-20 12-22 16-27 20-32 25-40 30-45 32-50 40-60 50-70 60-80 70-90 80-100 90-110 100-120 110-130 120-140 130-150 140-160 | 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9 9.9
| 0.762 0.762 0.762 0.762 0.762 0.762 0.762 0.762 0.762 0.762 0.762 0.762 0.762 0.762 0.762 0.762 0.762 | 3.4 3.4 3.4 3.4 3.4 3.4 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5
| 4.5 4.5 4.5 4.5 4.5 4.5 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0 6.0
| 203 203 203 182 182 92 92 92 92 92 92 39 39 39 39 39 39 39 17 17 |
