Jubilee ''O'' Clips

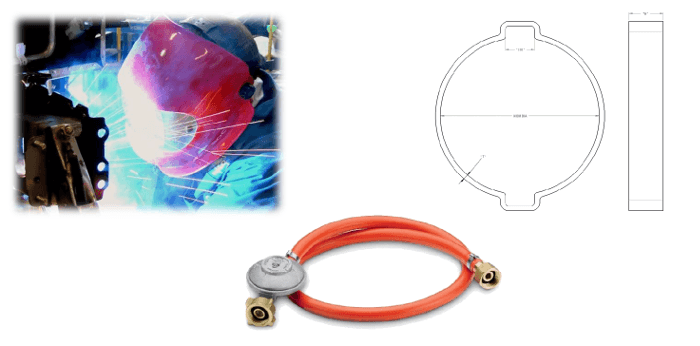

Jubilee ‘O’ Clip 2-Ear clamps are widely used for maintenance and OEM applications. Mainly used on air, fluid, gas and steam lines and also suitable for low-pressure hydraulic applications.

The absence of a screw mechanism allows Jubilee® 'O' Clips to be useful on extremely small hoses. The tamper-proof nature of the fitting may also make the Jubilee® ‘O’ Clips suitable for certain applications where there may be a risk associated with any interference to the fitting. Sometimes affectionately referred to as “Lemon Clips” due to their shape and also referred to as double ear clips and 2-ear clips.

Pincers (both normal closing and side closing) are used to crimp the ears of the clamps and affect a proper seal.

2-ear clamps are best installed by closing one ear fully first, the second ear is then closed so that the first ear opens slightly (gap to be approximately 1.5mm). This builds a resilient strength into the clamp in a spring-like action to hold against pressure, vibration and hose shrinkage due to temperature changes or ageing.


The success of the company based on the principal foundation of quality. Through both the variety of our products and the quality of our service, we aim to be a company that you can rely on. Jubilee® Clips are manufactured to the very highest standards, using only premium grade materials. All our product ranges are systematically checked to their various Standards during manufacture and packing. Jubilee clips are KitemarkedTM to BS 5315:1991, the company is registered to BS EN ISO 9001:2008 Quality Management System and ISO 14001 Environmental Management System. The Original and High Torque stainless steel ranges are also Lloyd’s Type Approved, essential when used for marine applications. All Jubilee® products conform to the latest EU Directives.



Jubilee Clips conduct Neutral Salt Spray tests (NSS) according to BS EN ISO 9227 2006. The NSS test is performed in a sealed chamber at 35oC, where a 5% NaCl solution with a PH value of between 6.5 and 7.2 is sprayed continuously onto the clips. The duration of time shown in this product brochure shows the minimum number of hours the clips can withstand the salt spray test without significant signs of corrosion (red rust formation). It is difficult to transfer this information to a length of time the clips would survive in an application under normal environmental conditions, as these will vary from one location to the next. Two hundred forty hours is regarded by the British construction industry as the equivalent of a lifetime of 60 years in an urban outside environment in the UK.


Available in Mild Steel and Stainless Steel

Shop for Products

Stainless Steel Jubilee ''O'' Clips





Part No.

Adjustment mm

Band

Width mm

Band

Thickness mm

Maximum

Pressure PSi

Part No.

OC0305SS

OC0507SS

OC0709SS

OC0911SS

OC1113SS

OC1315SS

OC1417SS

OC1518SS

OC1720SS

OC1821SS

OC2023SS

OC2225SS

3-5

5-7

7-9

9-11

11-13

13-15

14-17

15-18

17-20

18-21

20-23

22-25

5.0 6.0 7.0 7.0 7.0 7.5 8.0 8.0 8.5 9.0

9.0

10.0

0.7 0.7 1.0 1.0 1.0 1.0 1.2 1.2 1.2 1.5 1.5

1.5

200

200

200

200

200

200

200

200

200

180

180

180

OC0305SS

OC0507SS

OC0709SS

OC0911SS

OC1113SS

OC1315SS

OC1417SS

OC1518SS

OC1720SS

OC1821SS

OC2023SS

OC2225SS

Mild Steel Jubilee ''O'' Clips



Part No.

Adjustment mm

Band

Width mm

Band

Thickness mm

Maximum

Pressure PSi

OC0305MS

OC0507MS

OC0709MS

OC0911MS

OC1113MS

OC1315MS

OC1417MS

OC1518MS

OC1720MS

OC1821MS

OC2023MS

OC2225MS

OC2327MS

OC2528MS

OC2831MS

OC3134MS

OC3437MS

OC3740MS

OC4043MS

OC4346MS

3-5

5-7

7-9

9-11

11-13

13-15

14-17

15-18

17-20

18-21

20-23

22-25

23-27

25-28

28-31

31-34

34-37

37-40

40-43

43-46

5.0 6.0 7.0 7.0 7.0 7.5 8.0 8.0 8.5 9.0

9.0

10.0 10.0 10.0 10.0 10.0 10.0 10.0 10.0

10.0

10.0

0.7 0.7 1.0 1.0 1.0 1.0 1.2 1.2 1.2 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5

1.5

1.5

200

200

200

200

200

200

200

200

200

180

180

180

180

180

180

75

75

75

75

75
